AGL-460
The AGL Series Photovoltaic Drilling Rig is a high-efficiency rig developed by our company in response to national policies and market demand, specifically for solar PV pile construction. It can adjust construction modes to meet different job requirements.
{Weight^7000kg}
{Electric power^96kW}
{Max rotary torque^8500N·m}
{Electric power^96kW}
{Max rotary torque^8500N·m}
APPLICATION SCENARIOS
PRODUCT OVERVIEW

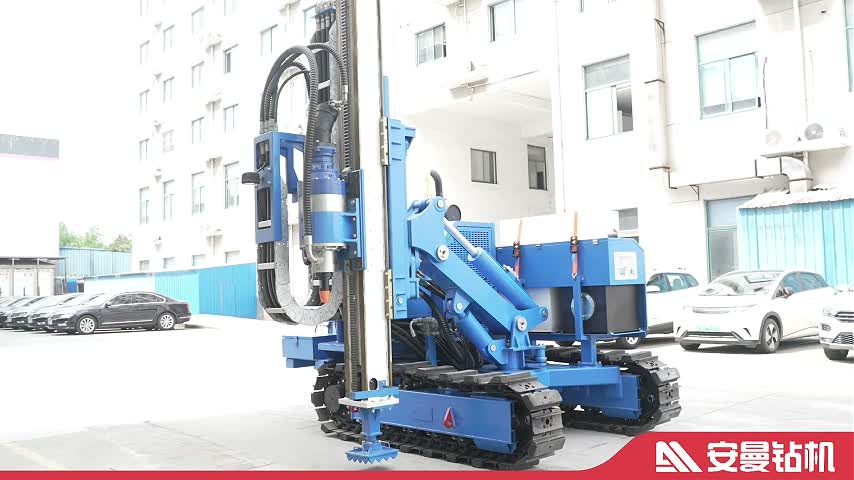

AGL-460 is a high-efficiency drilling rig specially developed for photovoltaic pile construction. Its modular design enables multi-function integration with one machine. Equipped with a self-adaptive speed system, it improves construction efficiency by 30%. The 320 mm crawler provides strong grip and adapts to mountainous and sloping conditions. The orifice guiding device ensures precise hole alignment. Widely used in photovoltaic pile installation, auger drilling and ground pile implantation, it is a reliable special equipment for photovoltaic engineering.
{Equipped with a newly upgraded self-adaptive speed system, construction efficiency is increased by 30%.}
{Wide application coverage. High rotating speed, large torque, hydraulic breaker operation, ample engine power. Construction modules can be changed for different scenarios, realizing multi-purpose integration.}
{Capable of 6m steel pile planting, fully meeting market construction requirements.}
{Flexible omnidirectional hole alignment. Rotating arm with left-right swing angle and adjustable pitch angle for fast and convenient multi-angle hole positioning.}

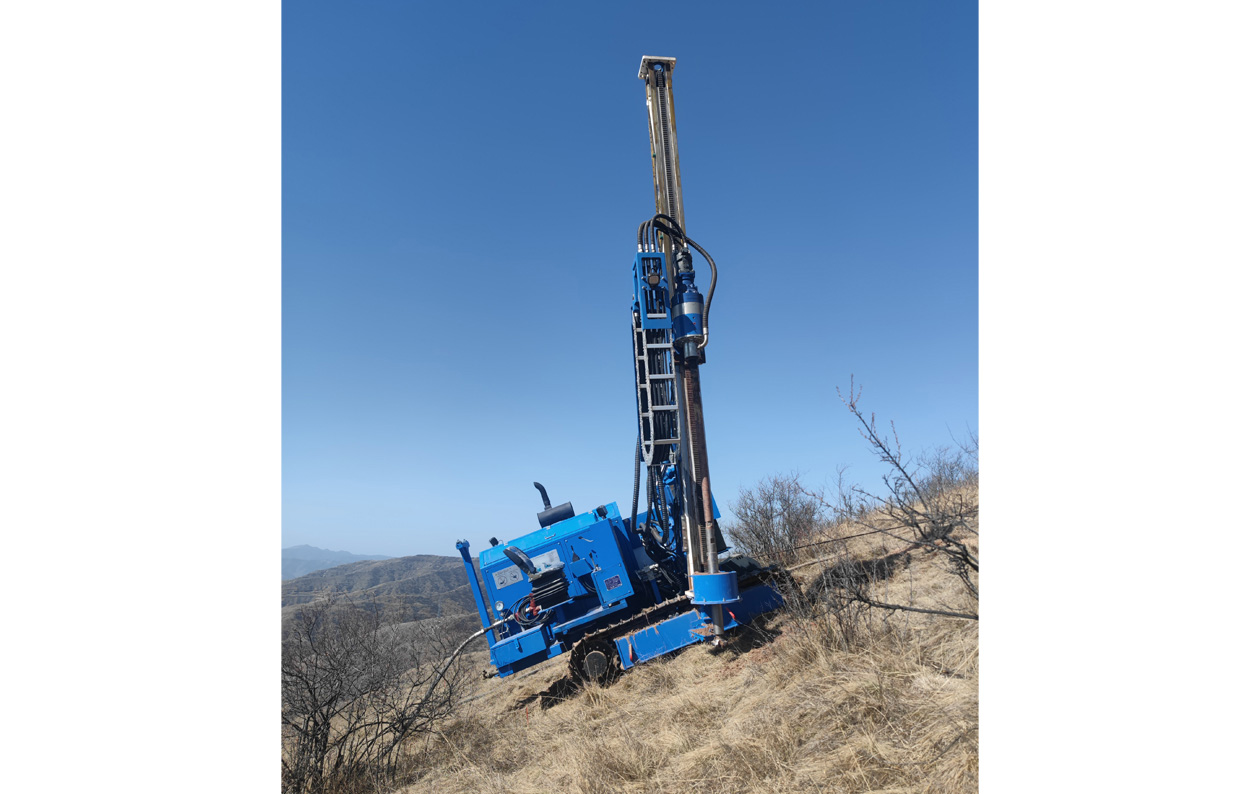

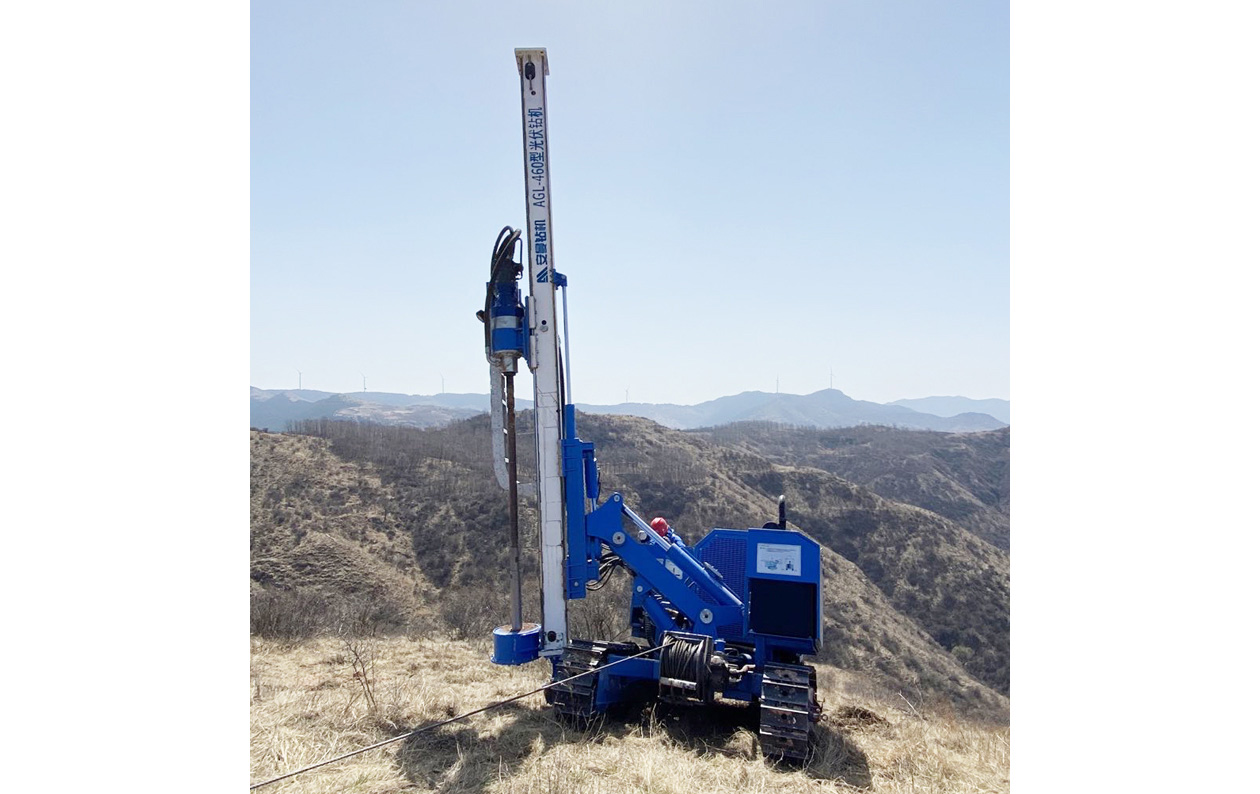

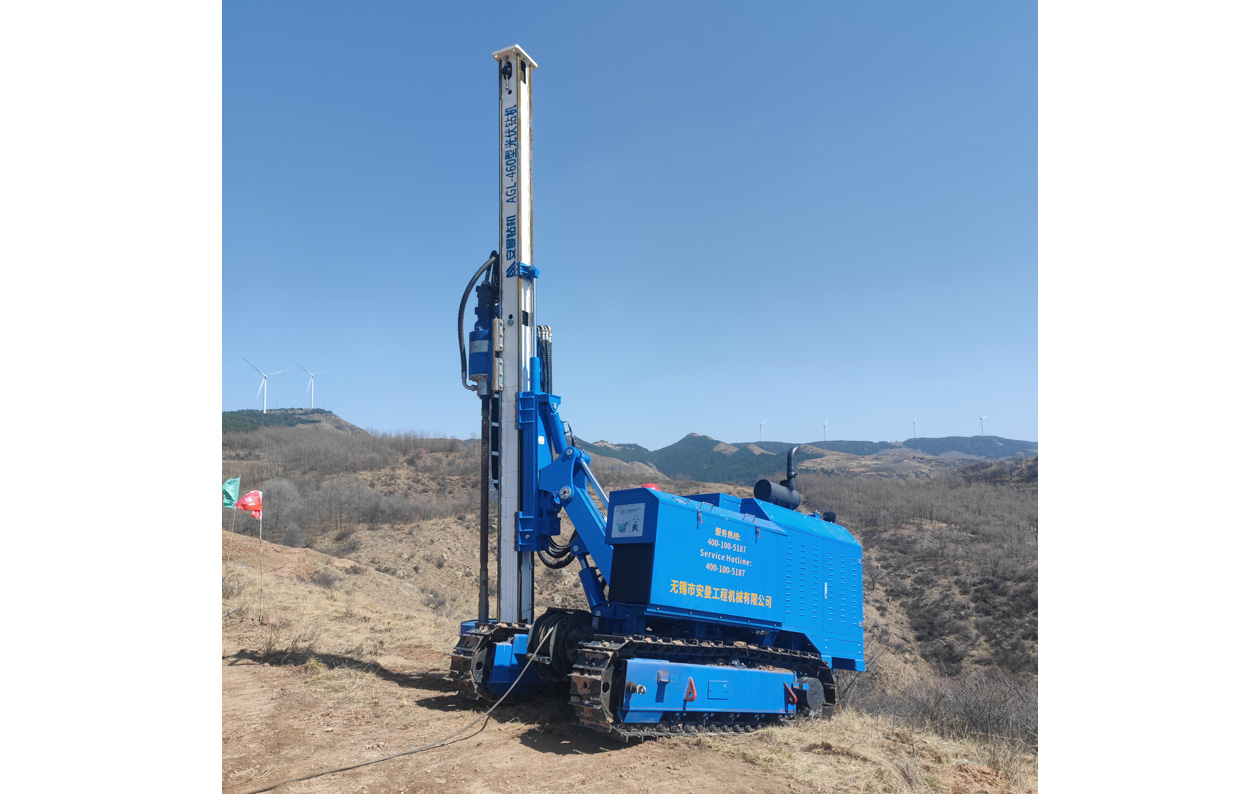

{Unlimited operation in mountain and Gobi areas. 320mm crawler with strong grip; telescopic high-low leg crawler, widely adaptable to slope construction.}
{Accurate hole alignment. Equipped with orifice guiding device for precise positioning, safe and reliable construction.}
{Widely used in: photovoltaic solar piles, auger drilling, ground pile implantation and other construction scenarios.}
{Wide application coverage. High rotating speed, large torque, hydraulic breaker operation, ample engine power. Construction modules can be changed for different scenarios, realizing multi-purpose integration.}
{Capable of 6m steel pile planting, fully meeting market construction requirements.}
{Flexible omnidirectional hole alignment. Rotating arm with left-right swing angle and adjustable pitch angle for fast and convenient multi-angle hole positioning.}
{Unlimited operation in mountain and Gobi areas. 320mm crawler with strong grip; telescopic high-low leg crawler, widely adaptable to slope construction.}
{Accurate hole alignment. Equipped with orifice guiding device for precise positioning, safe and reliable construction.}
{Widely used in: photovoltaic solar piles, auger drilling, ground pile implantation and other construction scenarios.}
TECHNICAL SPECS
{Machine Parameters,[
Weight^7000kg^,
Transport dimension^5960mm*2075mm*2550mm^]}
{Undercarriage,[
Max climbing ability^25°^,
Max Travel Speed^4000m/h^，
Telescopic High-Low Leg Crawler^×]}
{Power pack,[
Electric power^96kW^,
System pressure^20MPa^,
Fuel tank^110L^]}
{Mast,[Feed stroke^4600mm^,Max Pile Driving Stroke^6000mm，Carriage Pitch Angle^110°，Carriage Swing Angle^Left15°、Right25°，Arm Swing Angle^90°]}
{Drifter parameters,[Max rotary torque^8500N·m,Max rotary speed^80r/min,Power Head Flow^170L/min,Max impact power^1326N·m，Max impact frequency^800bpm]}
Weight^7000kg^,
Transport dimension^5960mm*2075mm*2550mm^]}
{Undercarriage,[
Max climbing ability^25°^,
Max Travel Speed^4000m/h^，
Telescopic High-Low Leg Crawler^×]}
{Power pack,[
Electric power^96kW^,
System pressure^20MPa^,
Fuel tank^110L^]}
{Mast,[Feed stroke^4600mm^,Max Pile Driving Stroke^6000mm，Carriage Pitch Angle^110°，Carriage Swing Angle^Left15°、Right25°，Arm Swing Angle^90°]}
{Drifter parameters,[Max rotary torque^8500N·m,Max rotary speed^80r/min,Power Head Flow^170L/min,Max impact power^1326N·m，Max impact frequency^800bpm]}
