AMP-600
AMP-600 is a high-pressure grouting pump developed and manufactured by our company in response to market demand.It is widely used in construction, highways, railways, bridges and other engineering fields for soft foundation reinforcement, uneven settlement remediation of existing buildings, anti-seepage curtains for reservoir dams and underground structures, and slope anchoring projects.
{Container Weight^16500kg}
{Input Power^410kW}
{Max Pressure ^90MPa}
{Input Power^410kW}
{Max Pressure ^90MPa}
APPLICATION SCENARIOS
3040
PRODUCT OVERVIEW

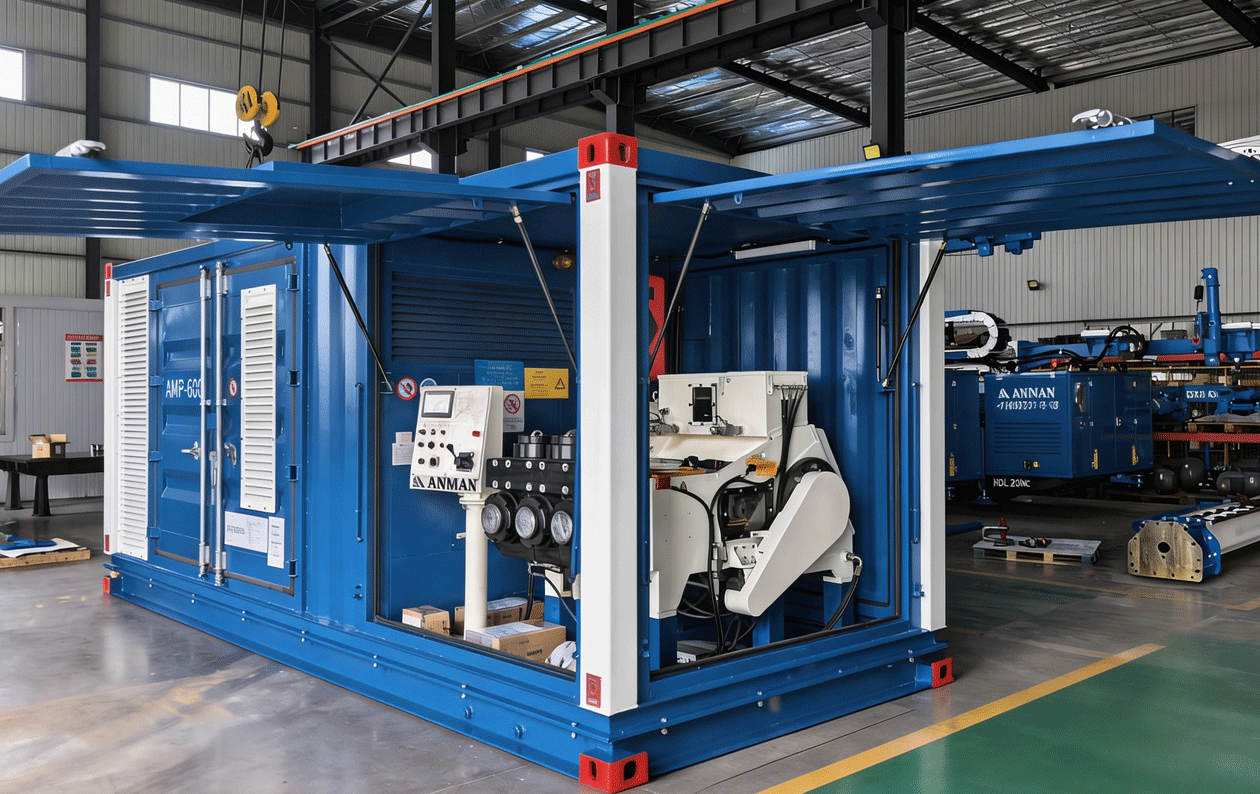

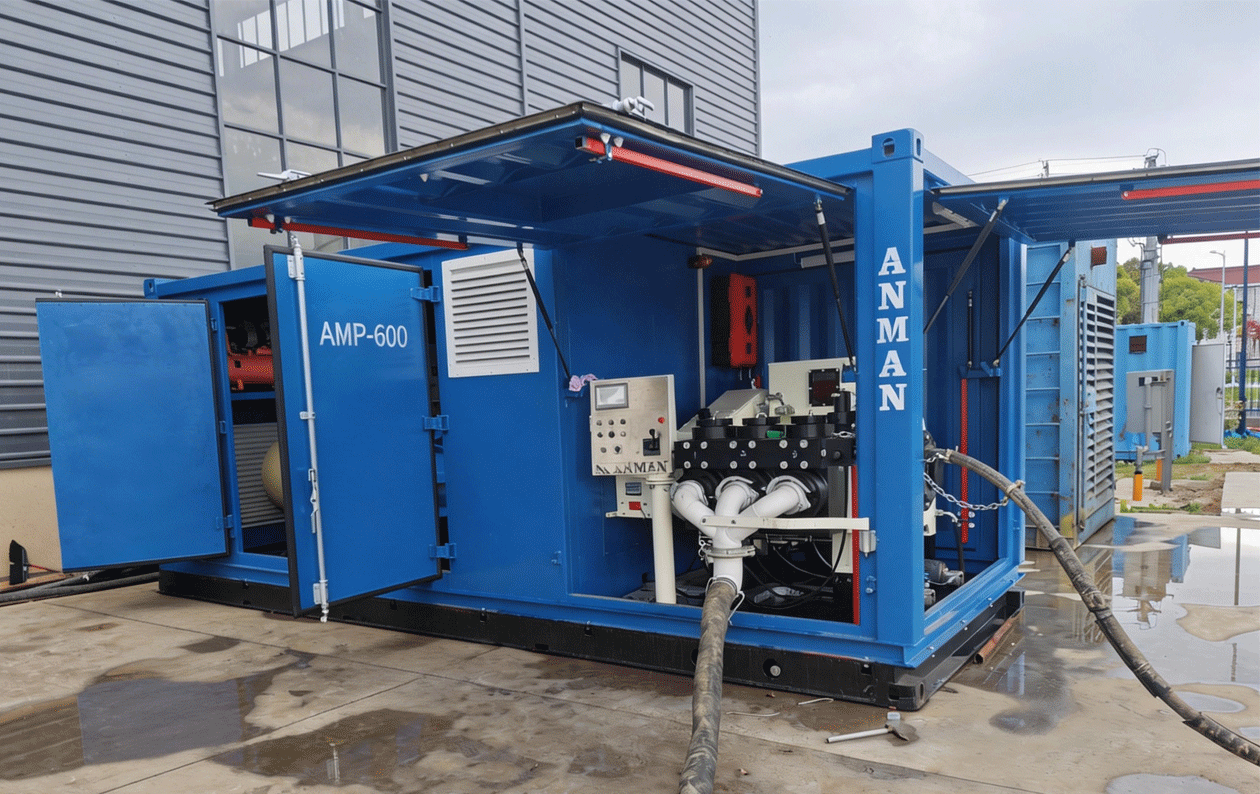

AMP-600 is a containerized high-pressure grouting pump. The whole unit conforms to 20-foot shipping standards for easy transportation and deployment. Equipped with 8 protection systems and dual oil circuit filtration, it is suitable for soft foundation reinforcement, anti-seepage curtains, slope anchoring and other projects. The self-driven lubrication system requires no external power supply. It is a reliable, efficient and easy-to-deploy grouting equipment.
{The overall dimension is a standard 20-foot container, which can be directly used as a shipping container for delivery.}
{Excellent sound insulation, high structural strength}
{Equipped with 8 protection systems}
{Dual filtration system for diesel engine oil circuit}
{Lubrication system is self-driven, no external power supply required}
{Excellent sound insulation, high structural strength}
{Equipped with 8 protection systems}
{Dual filtration system for diesel engine oil circuit}
{Lubrication system is self-driven, no external power supply required}
TECHNICAL SPECS
{Parameters,[
Container Dimensions (LWH)^6058mm*2438mm*2591mm,
Container Weight^16500 kg,
Input Power (Diesel Version)^410kW,
Fuel Tank Capacity^500 L,
Maximum Pressure^90 MPa,
Maximum Flow^800 L/min,
Piston Diameter^3‘’、4‘’、4-1/4‘’、4-1/2‘’、5‘’/76.2mm、101.6mm、107.95mm、114.3mm、127 mm,
Stroke^177.8 mm,
Max Stroke Speed^124 spm,
Suction Diameter^100 mm,
Output Diameter^1-1/2″/38.1 mm]}
Container Dimensions (LWH)^6058mm*2438mm*2591mm,
Container Weight^16500 kg,
Input Power (Diesel Version)^410kW,
Fuel Tank Capacity^500 L,
Maximum Pressure^90 MPa,
Maximum Flow^800 L/min,
Piston Diameter^3‘’、4‘’、4-1/4‘’、4-1/2‘’、5‘’/76.2mm、101.6mm、107.95mm、114.3mm、127 mm,
Stroke^177.8 mm,
Max Stroke Speed^124 spm,
Suction Diameter^100 mm,
Output Diameter^1-1/2″/38.1 mm]}
