AM-17
AM-17 Multi-Function Drilling Rig, flexible and efficient for anchor drilling. Full articulated angle adjustment, remote control travel, suitable for complex tunnel and slope conditions, safe and reliable in multi-process construction.
{Weight^20720kg}
{Eng. power^194kW}
{Max rotary torque^24480N·m}
{Eng. power^194kW}
{Max rotary torque^24480N·m}
APPLICATION SCENARIOS
3041
PRODUCT OVERVIEW

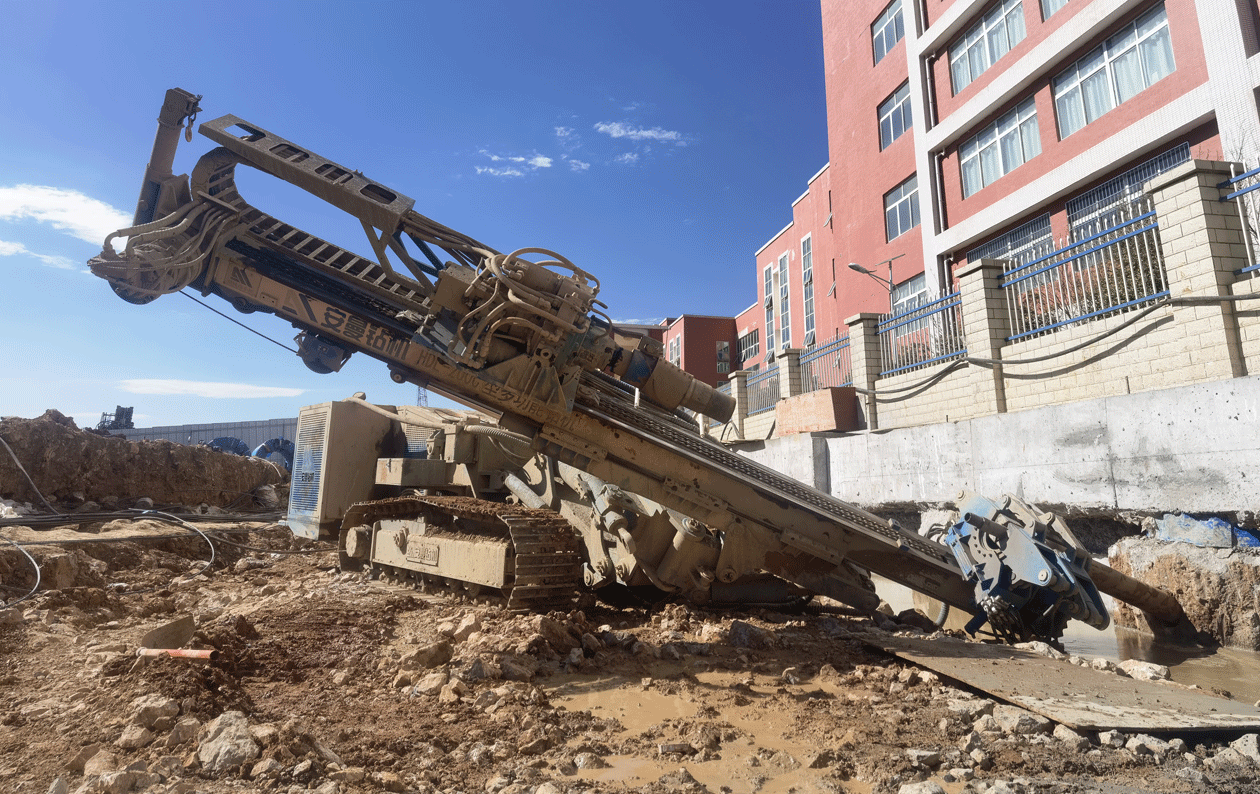

AM-17 adopts fully articulated angle adjustment mechanism for flexible multi-angle drilling, ideal for special-shaped holes in tunnels and slopes. Remote-controlled travel and crawler swing angle improve ramp adaptability and operational safety. Equipped with load-sensitive hydraulic system and high-altitude diesel engine, it is energy-saving and highly adaptable. The rig supports top drive, jet grouting, anchoring and other processes, suitable for pipe roofing, micro-piles, horizontal drilling and high-pressure jet grouting, providing a highly flexible and stable multi-function construction solution.
{Fully articulated angle adjustment mechanism for flexible and convenient angle regulation, suitable for various construction scenarios at home and abroad, especially meeting tunnel construction requirements.}
{High torque, high speed, strong power. Suitable for complex strata prone to hole collapse, with efficient hole forming. Capable of construction in water-rich strata without down-the-hole hammer.}
{Drill tools transmit impact energy from outside to inside, reducing hole accidents such as sticking and burying, thus lowering construction cost and risk.}

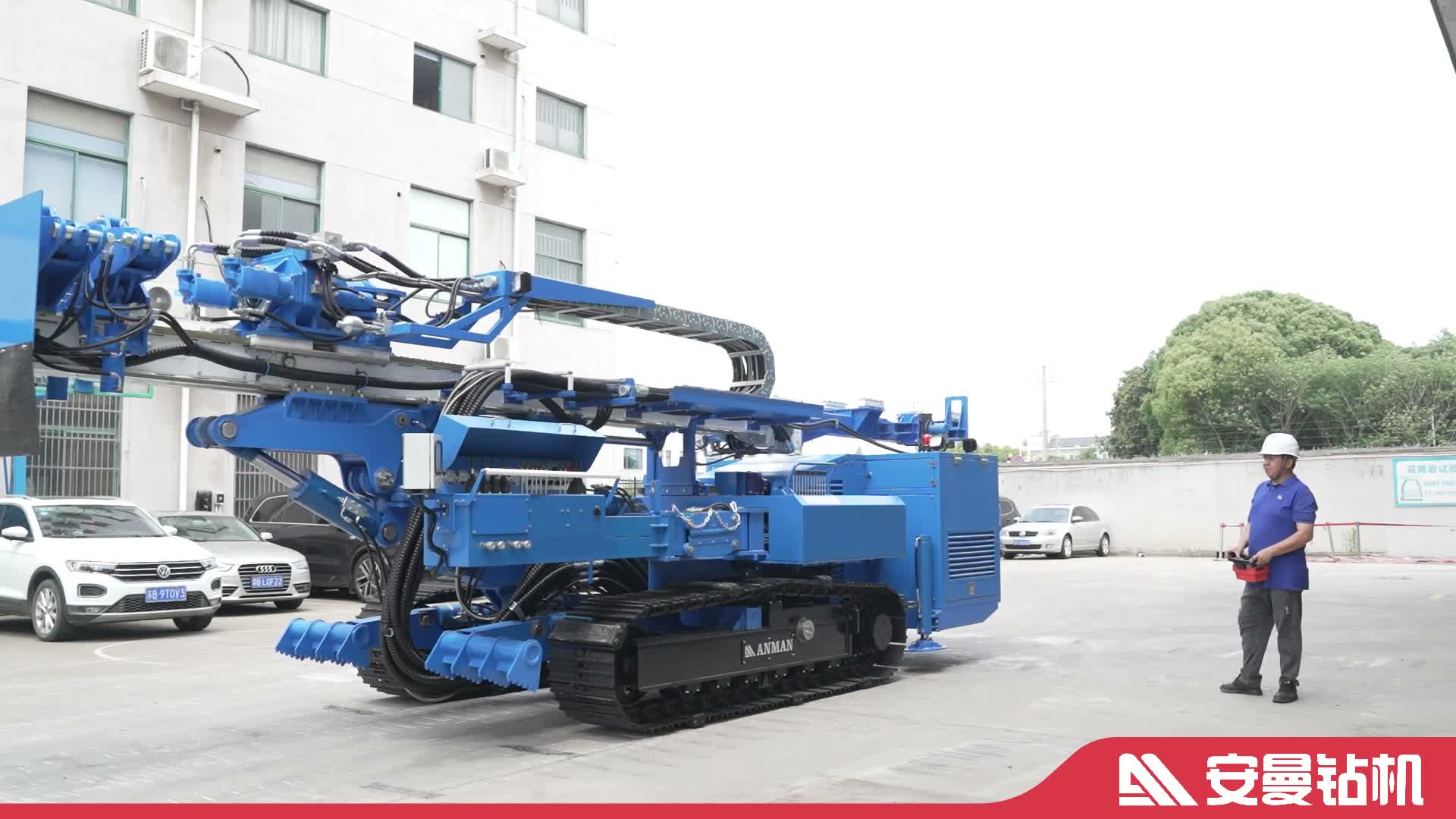

{Remote control travel + crawler swing angle, strong passability on complex terrain, safe and convenient construction.}
{Load-sensing hydraulic system + turbocharged diesel engine, strong power, energy-saving and high efficiency. Optional Euro 5 engine to meet overseas environmental standards.}
{Construction Applications: Tunnel advanced exploration holes, horizontal coring, pipe roofing, S-JET, high-precision full casing pilot holes, anchoring, jet grouting, micro-piles and other engineering constructions.}
{High torque, high speed, strong power. Suitable for complex strata prone to hole collapse, with efficient hole forming. Capable of construction in water-rich strata without down-the-hole hammer.}
{Drill tools transmit impact energy from outside to inside, reducing hole accidents such as sticking and burying, thus lowering construction cost and risk.}
{Remote control travel + crawler swing angle, strong passability on complex terrain, safe and convenient construction.}
{Load-sensing hydraulic system + turbocharged diesel engine, strong power, energy-saving and high efficiency. Optional Euro 5 engine to meet overseas environmental standards.}
{Construction Applications: Tunnel advanced exploration holes, horizontal coring, pipe roofing, S-JET, high-precision full casing pilot holes, anchoring, jet grouting, micro-piles and other engineering constructions.}
TECHNICAL SPECS
{Machine Parameters,[
Weight^20720kg^,
Transport dimension^8400mm*2750mm*3250mm^,
Vertical working ^6600mm*2400mm*7450mm^]}
{dimension,[
Wheel base^2525mm^,
Max width^2400mm^,
Pad width^500mm^,
Max climbing ability^20°^，
Max Travel Speed^1600m/h^]}
{Power pack,[
Diesel engine power^194kW^,
System pressure^28MPa^,
System flow^234+180L/min^,
Oil tank^580L^，
Fuel tank^300L^]}
{Mast,[Feed stroke^4100mm^,Total length^7185mm^,Feed force^80kN^,Feeding speed^0-50m/min^,Retract force^80kN^,Retract speed^0-50m/min^]}
{Clamps,[Clamp range^φ73-φ350mm^,Clamp force^235kN^,Max breaking ^68500N·m^]}
{Drifter parameters,[^HD-250^HD-120X^HQ-250,Max rotary torque^24480N·m^16425N·m^25000N·m,Max rotary speed^84r/min^308r/min^150r/min,Max impact power^1180N·m^650N·m^/,Max impact frequency^2000bpm^2300bpm^/]}
Weight^20720kg^,
Transport dimension^8400mm*2750mm*3250mm^,
Vertical working ^6600mm*2400mm*7450mm^]}
{dimension,[
Wheel base^2525mm^,
Max width^2400mm^,
Pad width^500mm^,
Max climbing ability^20°^，
Max Travel Speed^1600m/h^]}
{Power pack,[
Diesel engine power^194kW^,
System pressure^28MPa^,
System flow^234+180L/min^,
Oil tank^580L^，
Fuel tank^300L^]}
{Mast,[Feed stroke^4100mm^,Total length^7185mm^,Feed force^80kN^,Feeding speed^0-50m/min^,Retract force^80kN^,Retract speed^0-50m/min^]}
{Clamps,[Clamp range^φ73-φ350mm^,Clamp force^235kN^,Max breaking ^68500N·m^]}
{Drifter parameters,[^HD-250^HD-120X^HQ-250,Max rotary torque^24480N·m^16425N·m^25000N·m,Max rotary speed^84r/min^308r/min^150r/min,Max impact power^1180N·m^650N·m^/,Max impact frequency^2000bpm^2300bpm^/]}
