AM-6

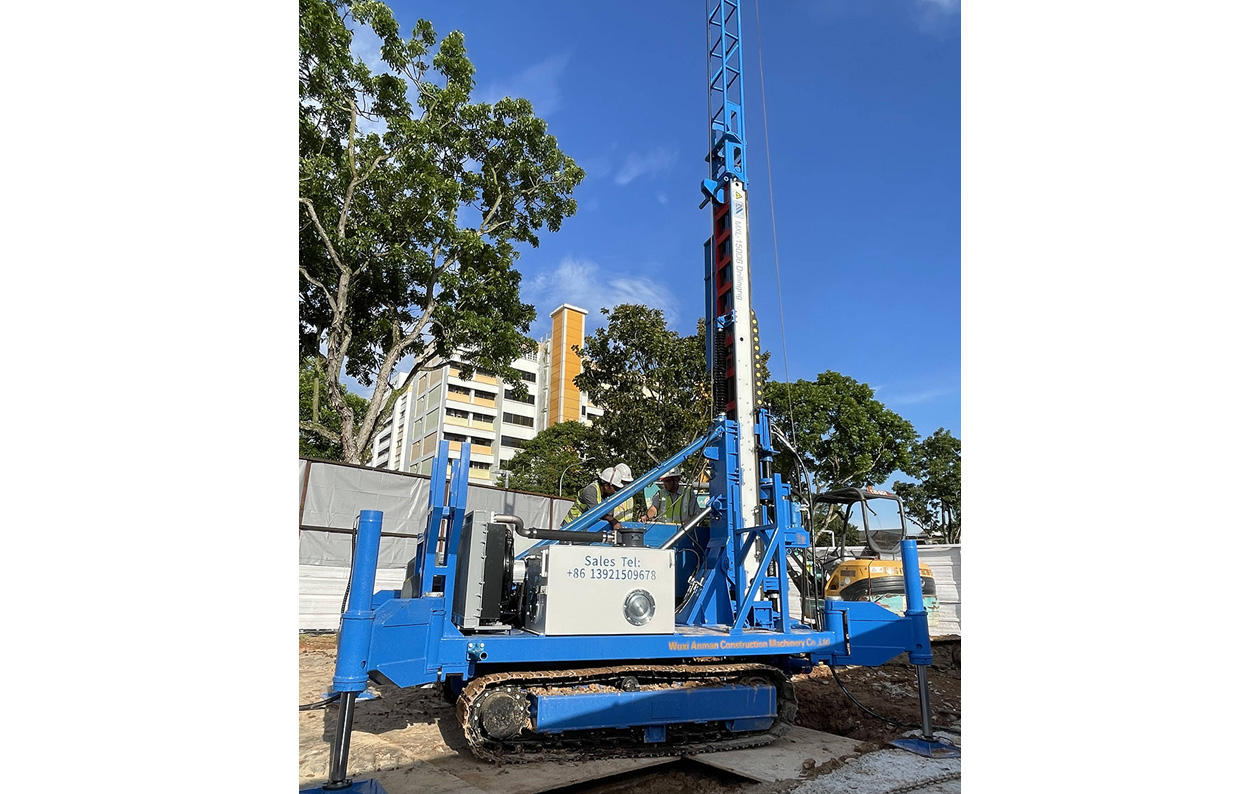

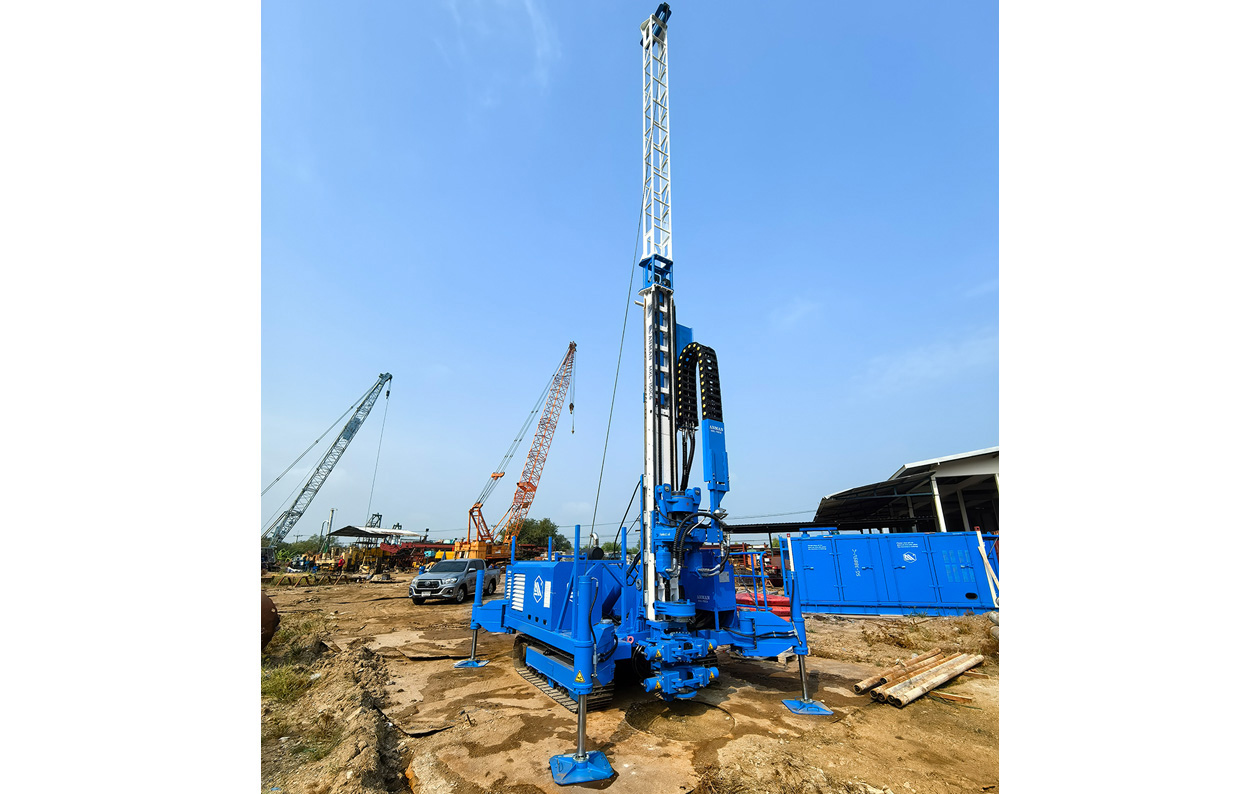

AM-6 Full Hydraulic Drilling Rig, featuring a multi-functional auxiliary tower with a large through-hole, achieves stable and efficient soft foundation treatment, suitable for jet grouting foundation engineering.
{Weight^7800kg}
{Eng. power^93kW}
{Max. torque^7000N·m}
{Eng. power^93kW}
{Max. torque^7000N·m}
APPLICATION SCENARIOS
3040
PRODUCT OVERVIEW

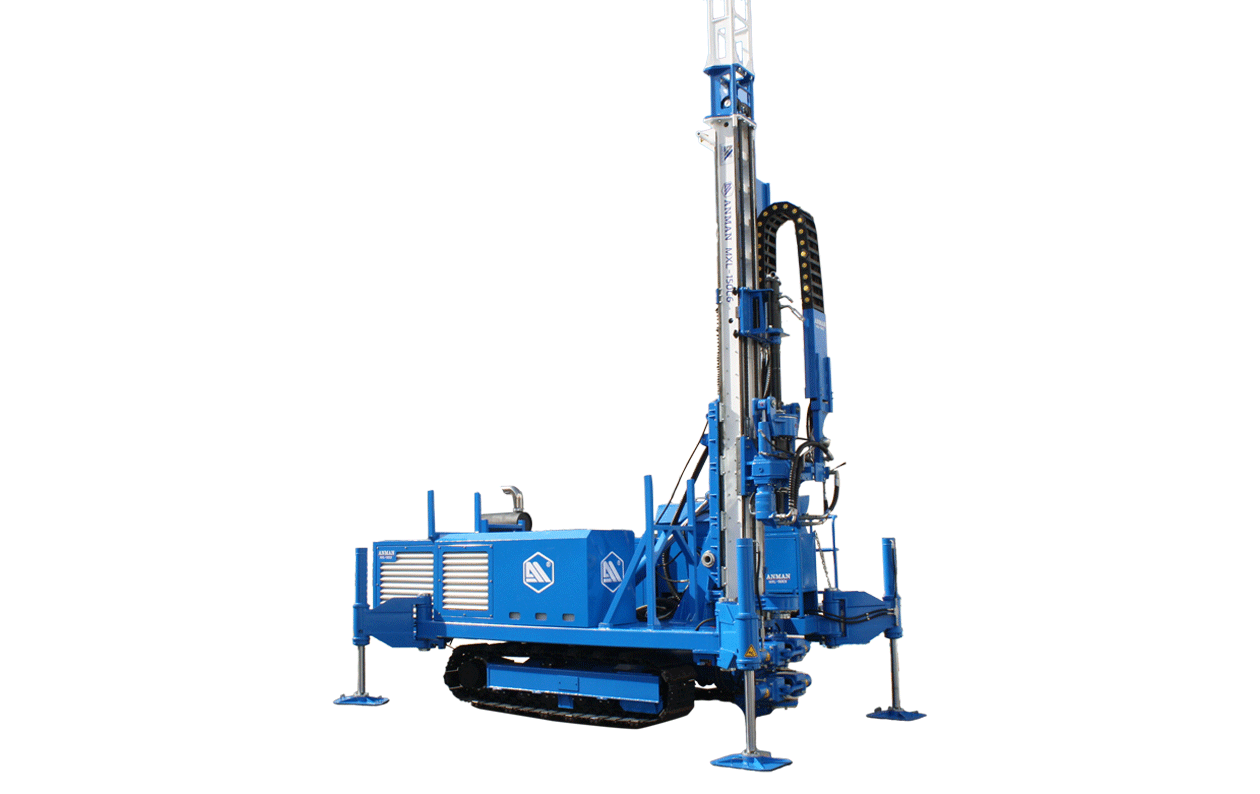

AM-6 is a full-hydraulic multi-functional drilling rig equipped with a detachable 10m auxiliary tower, covering multiple processes including jet grouting, anchoring and anti-floating anchor rods. The through-hole power head supports triple jet grouting, and the hydraulic chuck enables convenient drill changing. The crawler chassis with low ground pressure is suitable for soft soil surfaces, widely used in soft foundation treatment, water-stop curtain and pilot hole projects.
{Detachable 10m auxiliary tower can be added; optional counterweight + 3m auxiliary tower enables one-pole 15m operation, efficient and convenient.}
{Adjustable outrigger boom ensures more stable chassis during construction, effectively preventing tilting risks.}
{Drilling parameter monitor is optional to assist in optimizing construction processes.}
{Large through-hole swivel with hydraulic chuck allows drill changing without adapter; high-torque power head with reinforced jet grouting tools enables direct jet grouting in most formations without pilot holes, saving time and cost.}
{Equipped with orifice guiding device, which allows quick drill disassembly during jet grouting, ensuring angle and verticality; improves steel pipe performance and accuracy during anchoring; orifice rotating mechanism reduces drilling tool wear.}
{Adjustable outrigger boom ensures more stable chassis during construction, effectively preventing tilting risks.}
{Drilling parameter monitor is optional to assist in optimizing construction processes.}
{Large through-hole swivel with hydraulic chuck allows drill changing without adapter; high-torque power head with reinforced jet grouting tools enables direct jet grouting in most formations without pilot holes, saving time and cost.}
{Equipped with orifice guiding device, which allows quick drill disassembly during jet grouting, ensuring angle and verticality; improves steel pipe performance and accuracy during anchoring; orifice rotating mechanism reduces drilling tool wear.}
TECHNICAL SPECS
{Specs,[
Weight^7800kg^,
Transp. size^5900mm*2250mm*2300mm^,
Vert. Build Size^4500mm*3620mm*18800mm^]}
{Track chassis,[
Wheelbase^1980mm^,
Max Width^1955mm^,
Track Width^400mm^,
Max. grade^20°^,
Max. speed^1500m/h^]}
{Hydr. drive,[Diesel engine power^93kW^,
Pressure^20Mpa^,
Sys. Flow^190L/min^,
Hyd. Fluid Vol.^320L^,
Fuel vol.^90L^]}
{Mast,[
Feed stroke^3400mm^,
Overall L.^5500mm^,
Feed Force^35kN^,
Feed Speed^0-10Adjustable、14、46、59m/min^,
Lift Force^70kN^,
Lift Speed^0-5Adjustable、7、23、30m/min^]}
{Gripper,[
Grip Range^φ60-φ200mm^,
Clamp Force^157kN^,
Shackle Torque^15000N·m^]}
{Rotary params,[
Max. torque^7000N·m^,
Max. RPM^106r/min]^}
{Op. Parameters,[
Drill Angle^0-90°^,
Rod Dia.^φ60-φ89mm^,
Lift Height^3400mm^,
Single Rod^15000mm^]}
Weight^7800kg^,
Transp. size^5900mm*2250mm*2300mm^,
Vert. Build Size^4500mm*3620mm*18800mm^]}
{Track chassis,[
Wheelbase^1980mm^,
Max Width^1955mm^,
Track Width^400mm^,
Max. grade^20°^,
Max. speed^1500m/h^]}
{Hydr. drive,[Diesel engine power^93kW^,
Pressure^20Mpa^,
Sys. Flow^190L/min^,
Hyd. Fluid Vol.^320L^,
Fuel vol.^90L^]}
{Mast,[
Feed stroke^3400mm^,
Overall L.^5500mm^,
Feed Force^35kN^,
Feed Speed^0-10Adjustable、14、46、59m/min^,
Lift Force^70kN^,
Lift Speed^0-5Adjustable、7、23、30m/min^]}
{Gripper,[
Grip Range^φ60-φ200mm^,
Clamp Force^157kN^,
Shackle Torque^15000N·m^]}
{Rotary params,[
Max. torque^7000N·m^,
Max. RPM^106r/min]^}
{Op. Parameters,[
Drill Angle^0-90°^,
Rod Dia.^φ60-φ89mm^,
Lift Height^3400mm^,
Single Rod^15000mm^]}
