HT-60

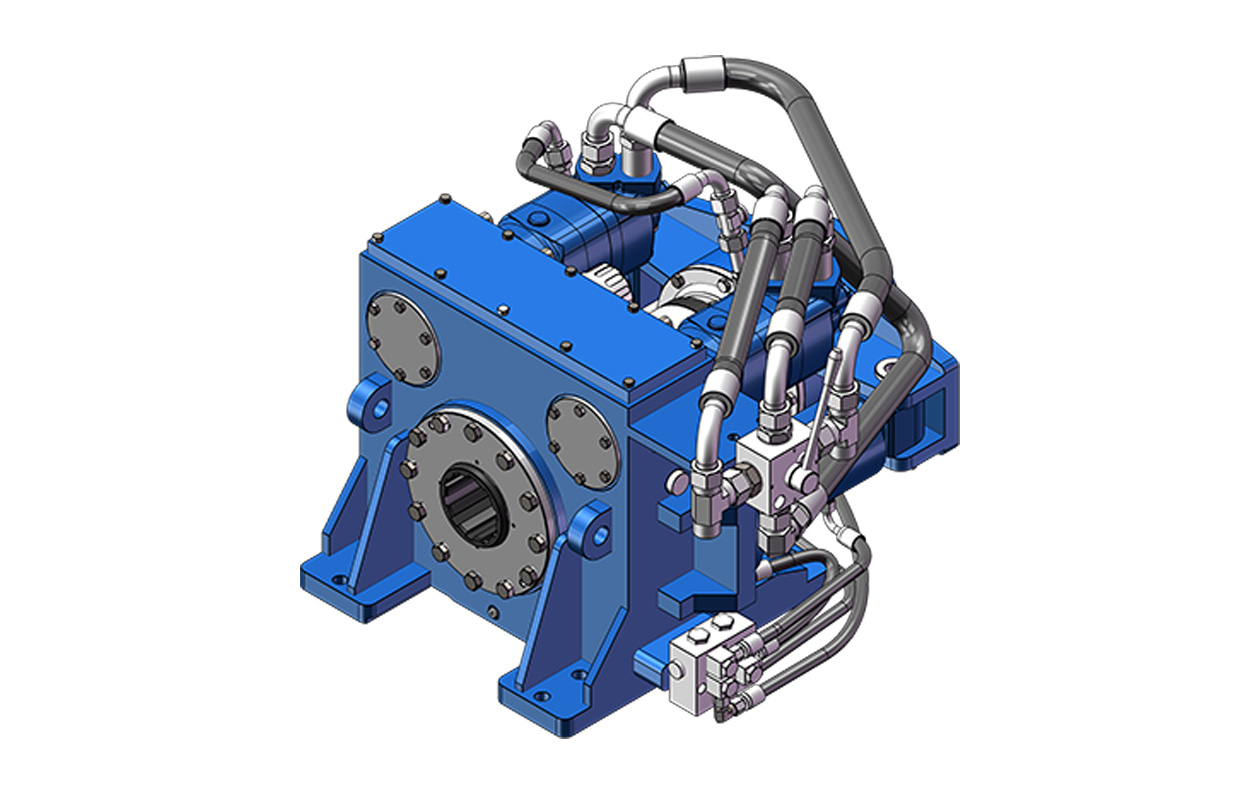

HQ60 Rotary Power Head is a high-performance hydraulic rotary unit designed for high-pressure rotary jet, soft foundation reinforcement, water cutoff curtain and other engineering projects, improving construction efficiency, reducing failures and lowering maintenance costs.
{Speed^106r/min}
{Slewing torque^3500N·m}
{Weight^410kg}
{Slewing torque^3500N·m}
{Weight^410kg}
APPLICATION SCENARIOS
3040
PRODUCT OVERVIEW
HQ60 Rotary Power Head is a high-performance hydraulic rotary unit designed for high-pressure rotary jetting, soft foundation reinforcement, waterproof curtain and other engineering applications.Compatible with 89 rotary jet drilling tools, it allows free switching between series and parallel valves to easily deliver low-speed high torque or high-speed low torque.It improves construction efficiency, reduces failure rates and lowers maintenance costs.It can be quickly matched with various high-pressure rotary jet rigs to meet diverse working condition requirements.
{Compatible with 89 rotary jet drilling tools, ideal for high-pressure rotary jet, soft foundation reinforcement, water cutoff curtain and other projects.}
{One-key switch between low-speed high torque and high-speed low torque to suit different working conditions.}
{Adapts to wide temperature ranges, stable under various on-site climates.}
{Equipped with world-renowned orbital motors for smooth power output, low failure rate and reliable long-hour continuous operation.}
{Standardized interfaces with genuine spare parts supply and technical support, reducing maintenance costs.}
{One-key switch between low-speed high torque and high-speed low torque to suit different working conditions.}
{Adapts to wide temperature ranges, stable under various on-site climates.}
{Equipped with world-renowned orbital motors for smooth power output, low failure rate and reliable long-hour continuous operation.}
{Standardized interfaces with genuine spare parts supply and technical support, reducing maintenance costs.}
TECHNICAL SPECS
{Power head parameters,[
Slewing torque ^7000/3500N·m,
Speed ^53/106r/min,
Rotating flow ^150L/min,
Rotating pressure ^18MPa,
modulus ^6,
Reduction ratio ^17:62 / 3.65,
Threaded output ^through-hole (Φ92),
Center height ^212mm,
Weight ^410kg]}
Slewing torque ^7000/3500N·m,
Speed ^53/106r/min,
Rotating flow ^150L/min,
Rotating pressure ^18MPa,
modulus ^6,
Reduction ratio ^17:62 / 3.65,
Threaded output ^through-hole (Φ92),
Center height ^212mm,
Weight ^410kg]}
