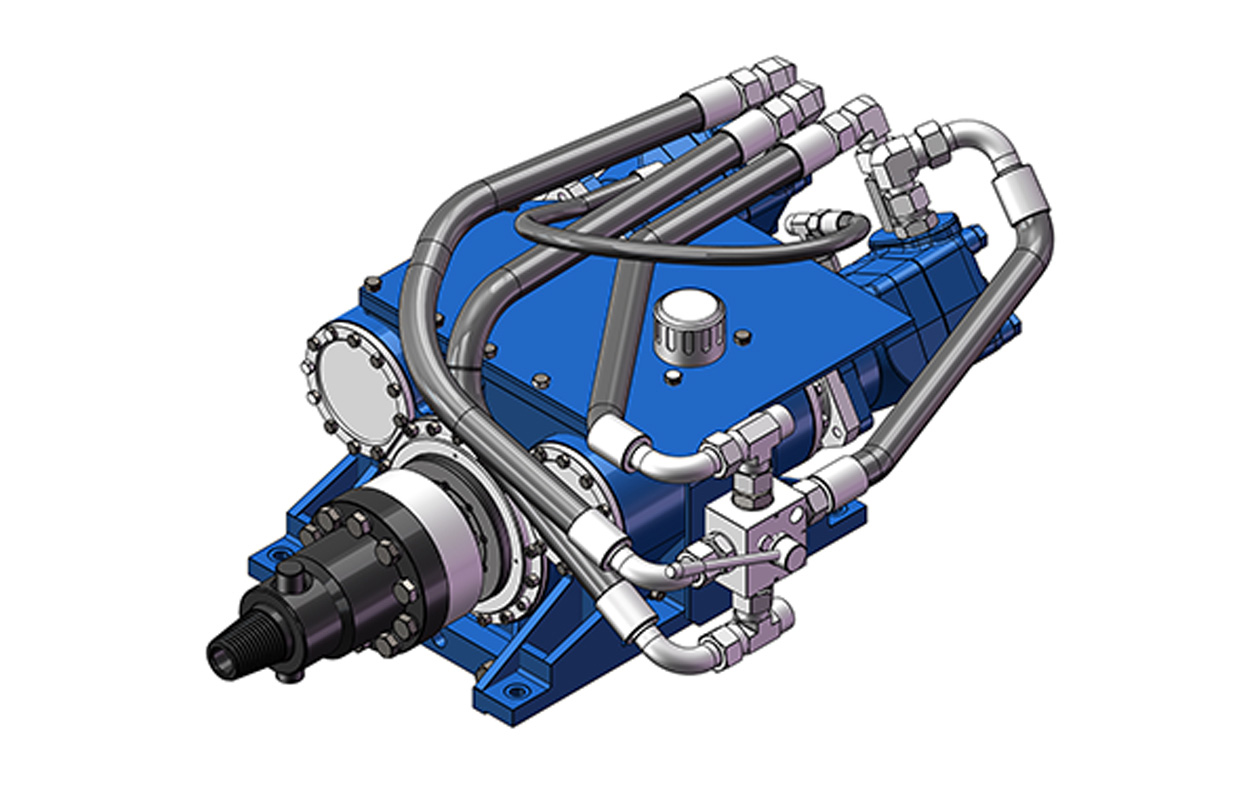

HQ-80
HQ80 Rotary Power Head is a lightweight hydraulic rotary unit designed for anchoring, slope support, foundation reinforcement and other projects, improving construction efficiency, reducing failure rate and lowering maintenance costs.
{Speed^170r/min}
{Slewing torque^3500N·m}
{Weight^230kg}
{Slewing torque^3500N·m}
{Weight^230kg}
APPLICATION SCENARIOS
3041
PRODUCT OVERVIEW
HQ80 Rotary Power Head is a lightweight hydraulic rotary unit designed for anchor rods & cables, slope support, foundation reinforcement and other engineering applications. Featuring freely switchable series-parallel valves for dual-speed operation, it boasts a compact structure, high rigidity and low vibration. Compatible with mainstream engineering drilling rigs for easier installation and commissioning, it improves construction efficiency, reduces failures and cuts maintenance costs.
{Compact structure, high strength, low vibration, compatible with mainstream engineering drilling rigs, easier installation and commissioning.}
{Equipped with active composite drill pipe, enabling dual-pipe operation of casing and drill pipe.}
{Freely switchable series-parallel valves for dual-speed output, adapting to multi-formation drilling with one unit.}
{Fitted with world-renowned orbital motors for smooth power output, low failure rate and reliable long-hour continuous operation.}
{Adapts to wide temperature ranges, performing stably under different on-site climates.}
{Standardized interfaces with genuine spare parts and professional technical support, reducing maintenance costs.}
{Equipped with active composite drill pipe, enabling dual-pipe operation of casing and drill pipe.}
{Freely switchable series-parallel valves for dual-speed output, adapting to multi-formation drilling with one unit.}
{Fitted with world-renowned orbital motors for smooth power output, low failure rate and reliable long-hour continuous operation.}
{Adapts to wide temperature ranges, performing stably under different on-site climates.}
{Standardized interfaces with genuine spare parts and professional technical support, reducing maintenance costs.}
TECHNICAL SPECS
{Power head parameters,[
Slewing torque ^7000/3500 N·m,
Speed ^85/170 r/min,
Rotating flow ^196 L/min,
Rotating pressure ^20MPa,
modulus ^6,
Reduction ratio ^18:43 / 2.39,
Thread output ^REG 2 - 3/8,
Center height ^107mm,
Weight ^230kg]}
Slewing torque ^7000/3500 N·m,
Speed ^85/170 r/min,
Rotating flow ^196 L/min,
Rotating pressure ^20MPa,
modulus ^6,
Reduction ratio ^18:43 / 2.39,
Thread output ^REG 2 - 3/8,
Center height ^107mm,
Weight ^230kg]}
