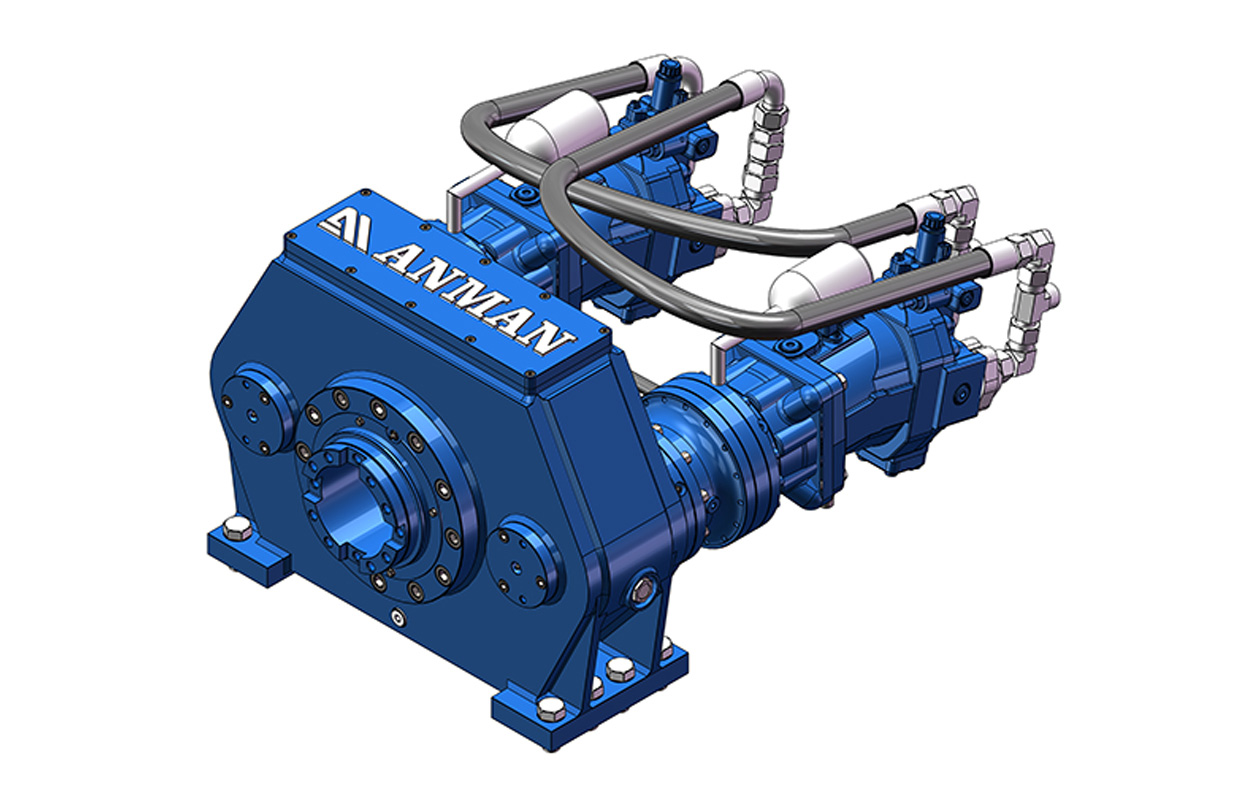

HQ-350
HQ350 High-Torque Rotary Power Head, heavy-duty power, lightweight and efficient, the preferred power head for large-scale anchoring and jet grouting projects!
{Speed^65r/min}
{Slewing torque^34000N·m}
{Weight^632kg}
{Slewing torque^34000N·m}
{Weight^632kg}
APPLICATION SCENARIOS
3041
PRODUCT OVERVIEW
HQ350 is a heavy-duty hydraulic rotary power head designed for large-scale infrastructure, deep foundation pit anchoring and high-difficulty jet grouting projects. It can be matched with HD100X or HD120X power heads to form a dual power head combination mode, accurately solving pain points such as insufficient torque, low efficiency and complex maintenance in large-diameter and deep-hole drilling. Equipped with internationally renowned brand motors, it balances heavy-load capacity and easy installation, suitable for full-scene construction including anchor rods & cables, foundation reinforcement, geothermal drilling and tunnel advanced support.
{Can be matched with HD100X or HD120X power heads to form a dual power head combination.}
{High torque output, adjustable series-parallel speed, easily handling large-diameter, deep-hole and heavy-load drilling.}
{Equipped with world-renowned brand cycloid motors for smooth power output and low failure rate, ensuring long-term continuous construction.}
{Adaptable to a wide temperature range environment, unaffected by climate differences at the construction site.}
{Standardized interfaces, original spare parts guarantee and technical support reduce maintenance costs.}
{High torque output, adjustable series-parallel speed, easily handling large-diameter, deep-hole and heavy-load drilling.}
{Equipped with world-renowned brand cycloid motors for smooth power output and low failure rate, ensuring long-term continuous construction.}
{Adaptable to a wide temperature range environment, unaffected by climate differences at the construction site.}
{Standardized interfaces, original spare parts guarantee and technical support reduce maintenance costs.}
TECHNICAL SPECS
{Power head parameters,[
Slewing torque ^13800-34000N·m,
Rev speed^26-65r/min,
Rotating flow ^200Lmin,
Rotating pressure ^28MPa,
modulus ^6,
Reduction ratio ^18:69 / 3.83,
Threaded output ^through-hole (Φ145),
Center height ^298mm,
Weight ^632kg]}
Slewing torque ^13800-34000N·m,
Rev speed^26-65r/min,
Rotating flow ^200Lmin,
Rotating pressure ^28MPa,
modulus ^6,
Reduction ratio ^18:69 / 3.83,
Threaded output ^through-hole (Φ145),
Center height ^298mm,
Weight ^632kg]}
