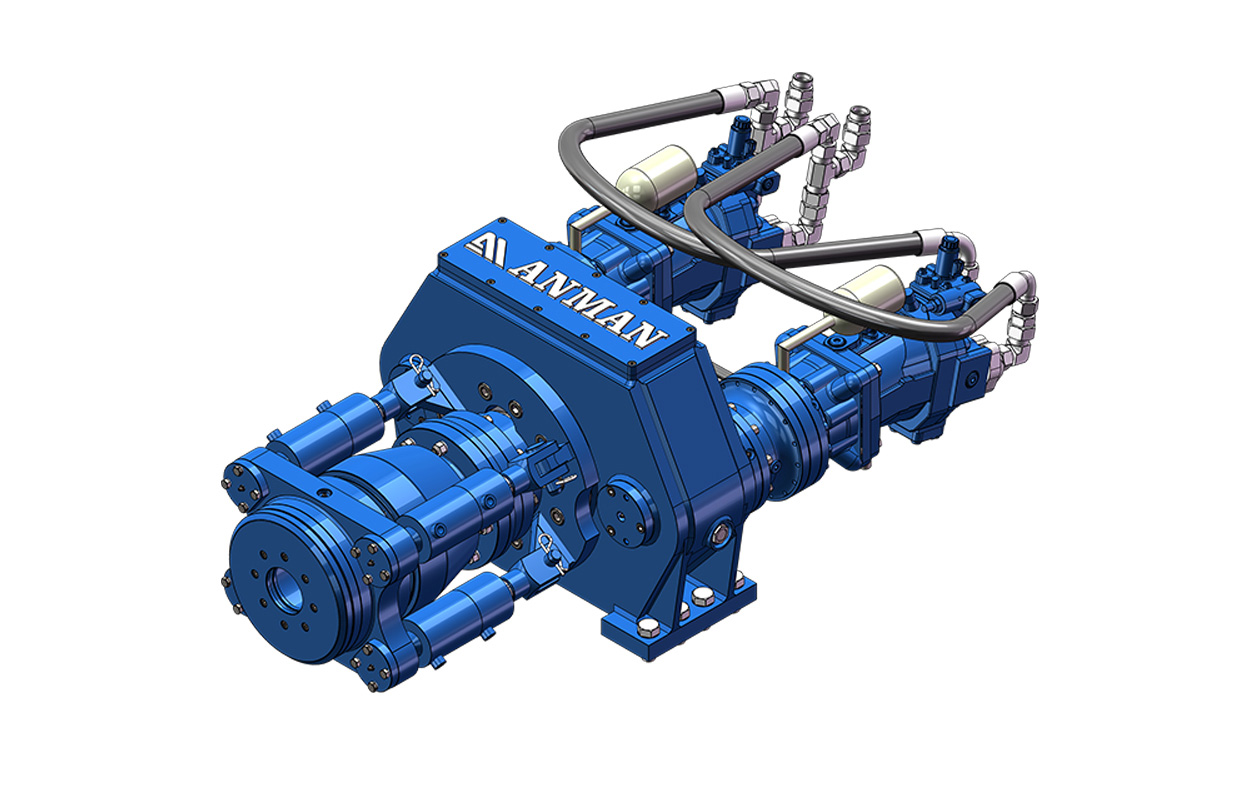

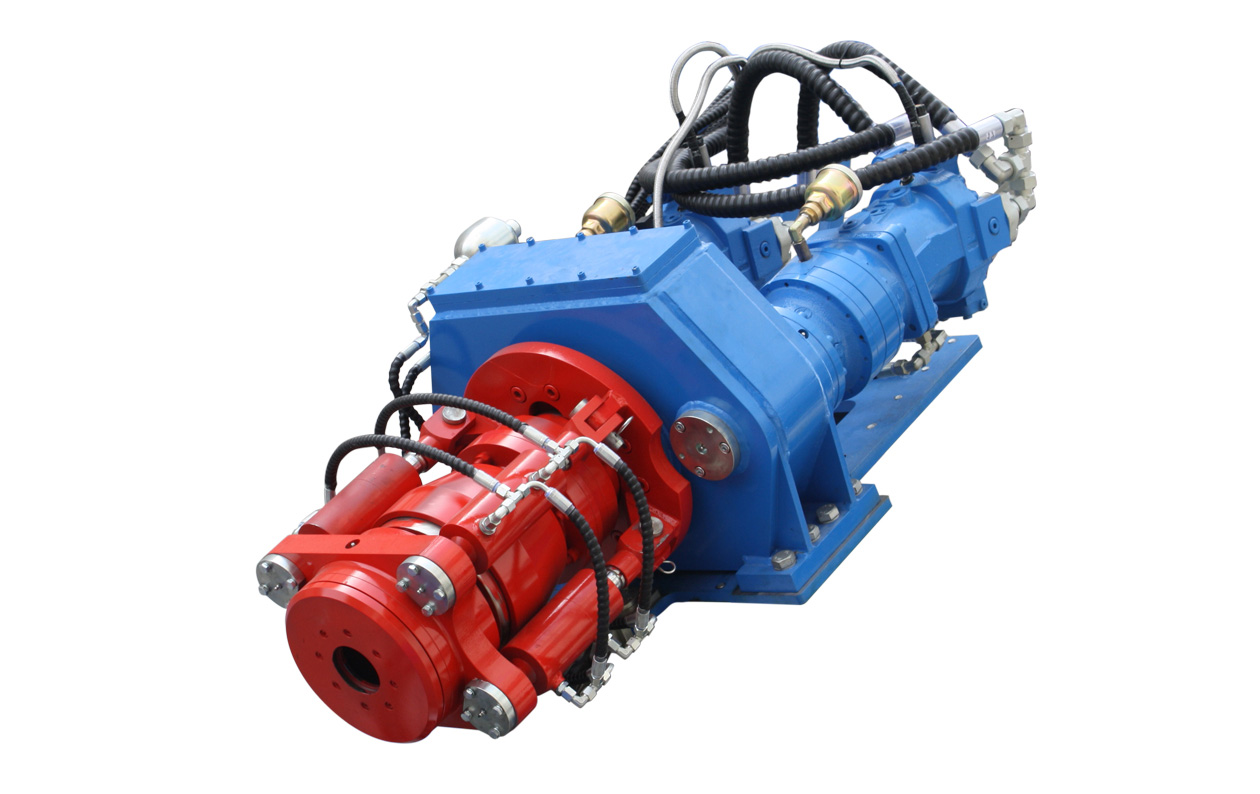

HQ-250(Jet)
HQ250 Rotary Power Head is a high-performance hydraulic rotary unit specially designed for anchoring, jet grouting, tunnel pipe shed, geological exploration, slope support, foundation reinforcement and other projects, improving construction efficiency, reducing failure rate and lowering maintenance costs.
{Speed^150r/min}
{Slewing torque^25000N·m}
{Weight^936kg}
{Slewing torque^25000N·m}
{Weight^936kg}
APPLICATION SCENARIOS
3040
PRODUCT OVERVIEW
HQ250 Rotary Power Head provides a high-torque, fast-speed-adjustment, and highly reliable rotary drive solution for projects such as anchoring, rotary jet, tunnel pipe shed, geological exploration, and slope support. It accurately solves the five major pain points in construction: insufficient torque, troublesome speed adjustment, instability under extreme working conditions, high maintenance costs, and poor adaptability. It can quickly match various hydraulic drilling rigs to meet the needs of all types of working conditions.
{High torque and fast hole forming, suitable for high-load working conditions such as deep foundation anchoring and slope support.}
{One-key switch between low-speed high torque and high-speed low torque to adapt to different working conditions.}
{Equipped with a world-renowned cycloid motor, it delivers smooth power output and low failure rate, ensuring long-term continuous construction.}
{Adaptable to a wide temperature range, unaffected by climate differences in the construction environment.}
{Standardized interfaces, with genuine spare parts guarantee and technical support to reduce maintenance costs.}
{Perfectly matches multiple scenarios such as anchoring, jet grouting, tunnels, and pipe sheds, covering more projects with one set.}
{One-key switch between low-speed high torque and high-speed low torque to adapt to different working conditions.}
{Equipped with a world-renowned cycloid motor, it delivers smooth power output and low failure rate, ensuring long-term continuous construction.}
{Adaptable to a wide temperature range, unaffected by climate differences in the construction environment.}
{Standardized interfaces, with genuine spare parts guarantee and technical support to reduce maintenance costs.}
{Perfectly matches multiple scenarios such as anchoring, jet grouting, tunnels, and pipe sheds, covering more projects with one set.}
TECHNICAL SPECS
{Power head parameters,[
Slewing torque ^25000N·m,
Speed ^150r/min,
Rotating flow ^200L/min,
Rotating pressure ^28MPa,
modulus ^5,
Reduction ratio ^21:84 / 4,
Threaded output ^through-hole (Φ130),
Center height ^275mm,
Weight ^936kg]}
Slewing torque ^25000N·m,
Speed ^150r/min,
Rotating flow ^200L/min,
Rotating pressure ^28MPa,
modulus ^5,
Reduction ratio ^21:84 / 4,
Threaded output ^through-hole (Φ130),
Center height ^275mm,
Weight ^936kg]}
