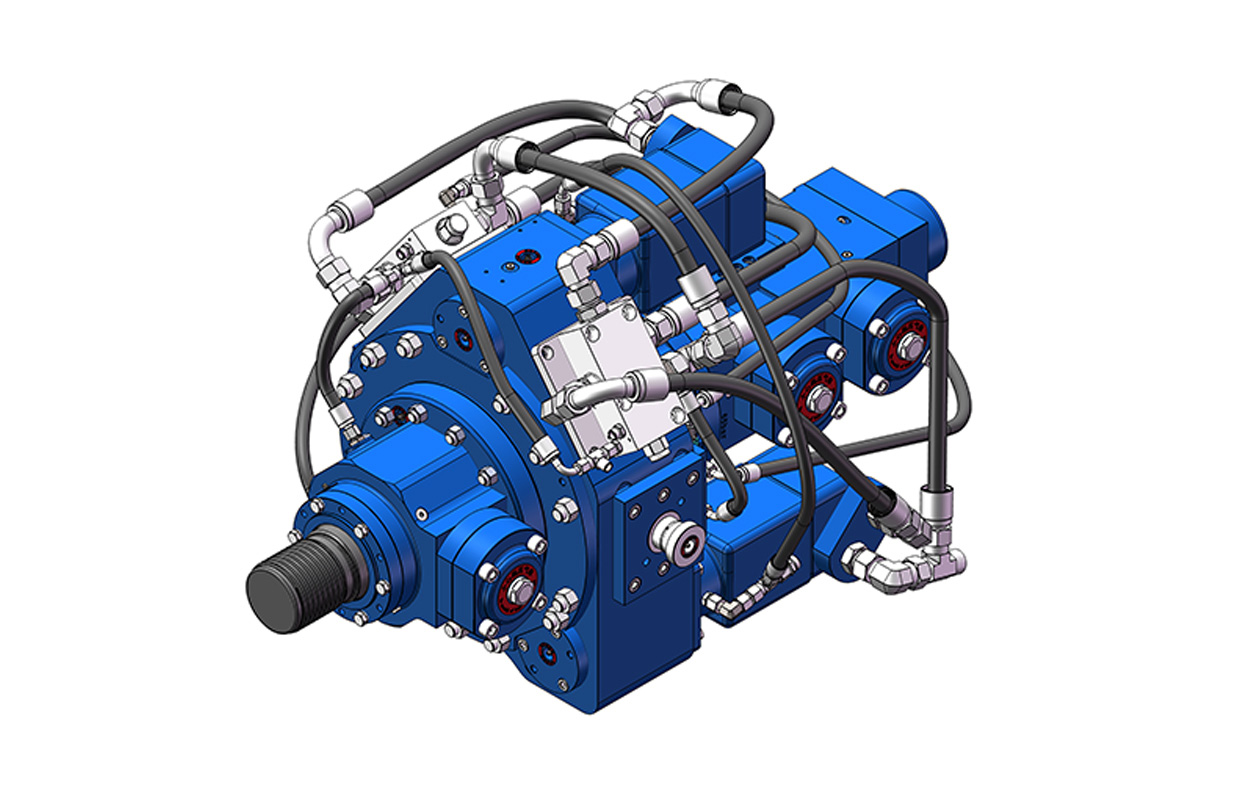

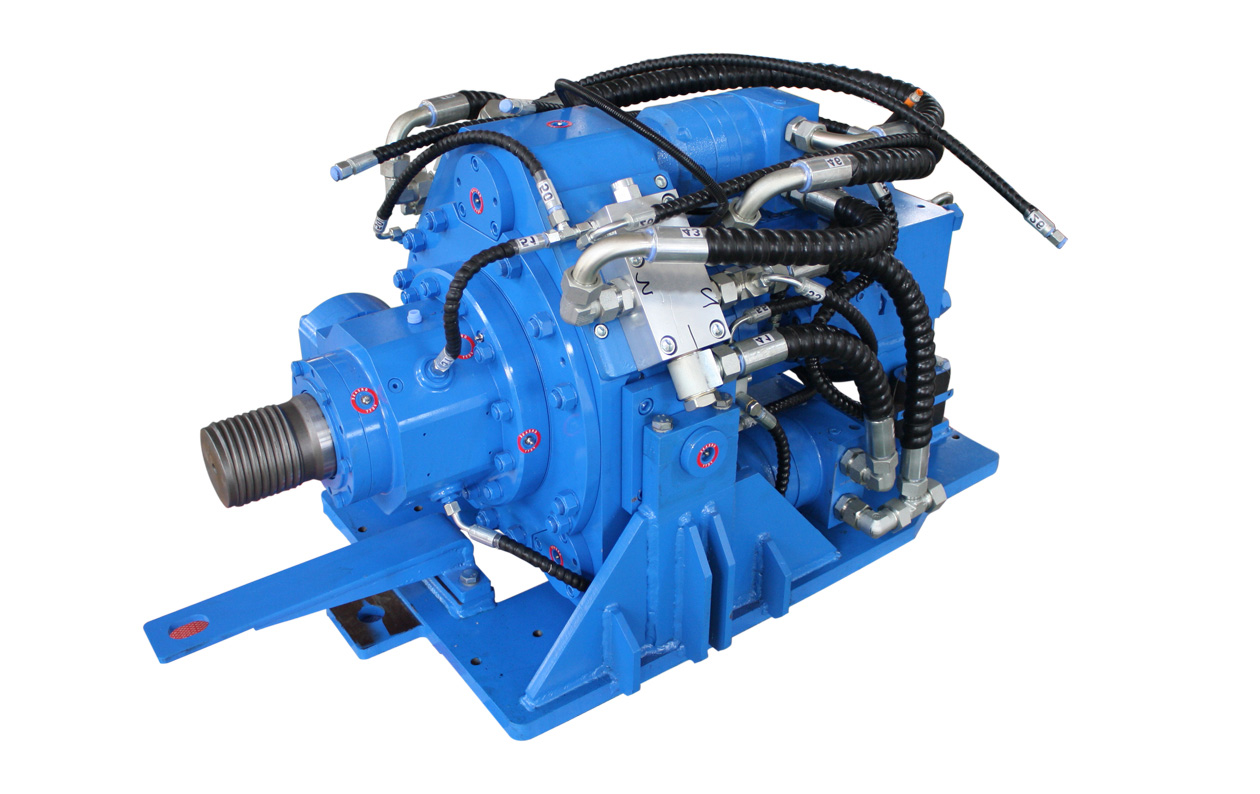

HD-250
HD250 Percussive Rotary Power Head. Powerful percussion with high torque, toughly drills ultra-hard rock formations. The core choice for infrastructure drilling!
{Speed^60r/min}
{Slewing torque^8160N·m}
{Weight^900kg}
{Slewing torque^8160N·m}
{Weight^900kg}
APPLICATION SCENARIOS
3041
PRODUCT OVERVIEW
HD250 Top Drive Rotary Power Head is a high-end component engineered for extreme drilling conditions such as ultra-hard rock and large cobble beds. As the core power unit of engineering drilling rigs, it integrates high impact energy, high torque and high-frequency percussion, thoroughly resolving industry pain points including slow penetration, insufficient torque and excessive wear of conventional equipment in ultra-hard formations. Fitted with internationally renowned hydraulic motors, multiple high-pressure accumulators and an intelligent reverse percussion mechanism, it is suitable for full-scenario construction including foundation reinforcement, geothermal drilling and tunnel advance support.
{Integrates high impact energy, high torque and high-frequency percussion, easily conquers ultra-hard rock, coarse gravel layers and cobble beds, doubling drilling efficiency in complex conditions.}
{Multi-speed torque and speed settings for flexible configuration to construction needs, covering both light and heavy drilling scenarios with one unit.}
{Multiple high-pressure accumulators ensure stable energy storage and pressure, delivering consistent impact power without attenuation and greatly reducing failure rate.}
{High-performance backstroke device enables quick rod lifting during sticking, effectively reducing tool wear and downtime.}
{Adapts to wide temperature ranges, performing reliably regardless of climate variations on site.}
{Equipped with world-renowned orbital motors for smooth power output, low failure rate and reliable long-hour continuous operation.}
{Standardized interfaces with genuine spare parts and technical support, minimizing maintenance costs.}
{Multi-speed torque and speed settings for flexible configuration to construction needs, covering both light and heavy drilling scenarios with one unit.}
{Multiple high-pressure accumulators ensure stable energy storage and pressure, delivering consistent impact power without attenuation and greatly reducing failure rate.}
{High-performance backstroke device enables quick rod lifting during sticking, effectively reducing tool wear and downtime.}
{Adapts to wide temperature ranges, performing reliably regardless of climate variations on site.}
{Equipped with world-renowned orbital motors for smooth power output, low failure rate and reliable long-hour continuous operation.}
{Standardized interfaces with genuine spare parts and technical support, minimizing maintenance costs.}
TECHNICAL SPECS
{Power head parameters,[
Slewing torque ^24480/16320/8160N·m,
Speed ^20/30/60r/min,
Rotating flow ^170L/min,
Rotating pressure ^20MPa,
modulus ^5,
Reduction ratio ^21:84 / 4,
Thread output ^H122,
Center height ^290mm,
Weight ^900kg,
Impact work^1180J,
Impact frequency ^2000bpm,
Impact flow ^70~95L/min,
Impact pressure ^16~20Mpa,
Total power ^76~88kW,
Apply pressure ^100kN,
Enhancement ^200kN]}
Slewing torque ^24480/16320/8160N·m,
Speed ^20/30/60r/min,
Rotating flow ^170L/min,
Rotating pressure ^20MPa,
modulus ^5,
Reduction ratio ^21:84 / 4,
Thread output ^H122,
Center height ^290mm,
Weight ^900kg,
Impact work^1180J,
Impact frequency ^2000bpm,
Impact flow ^70~95L/min,
Impact pressure ^16~20Mpa,
Total power ^76~88kW,
Apply pressure ^100kN,
Enhancement ^200kN]}
