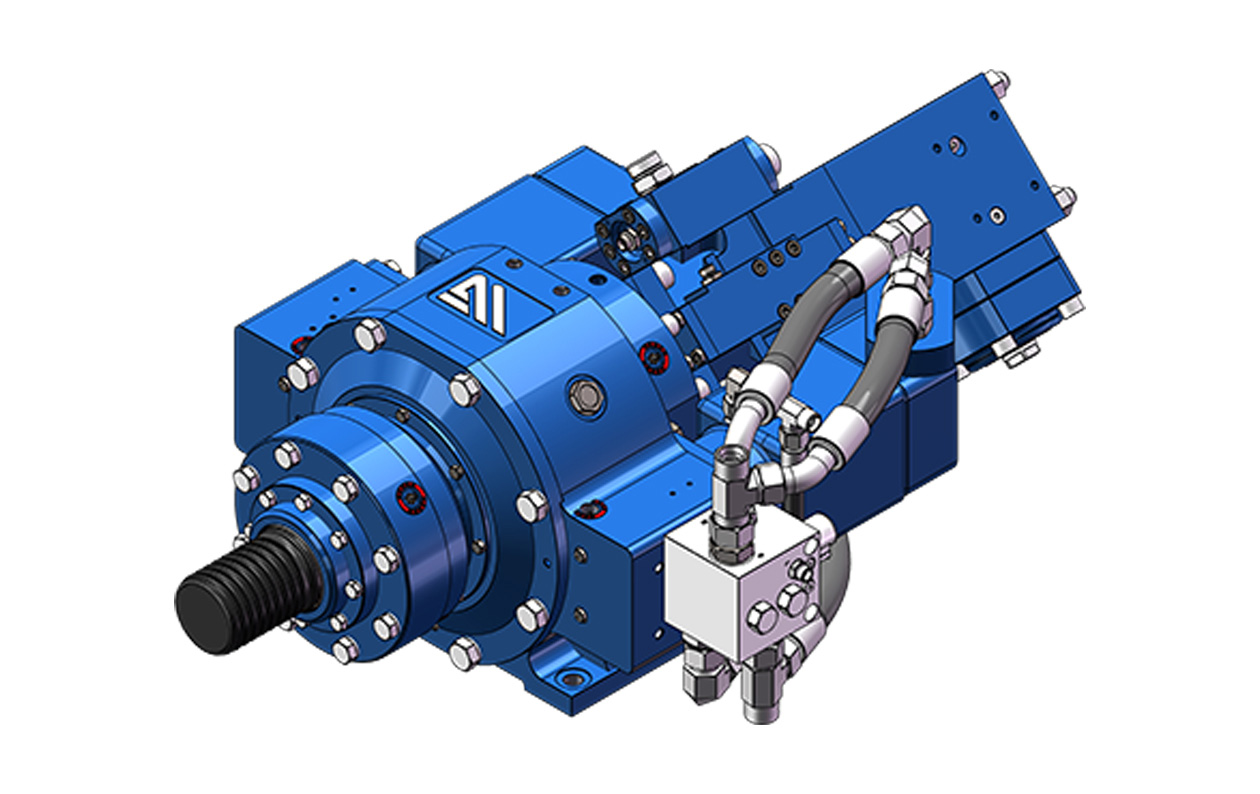

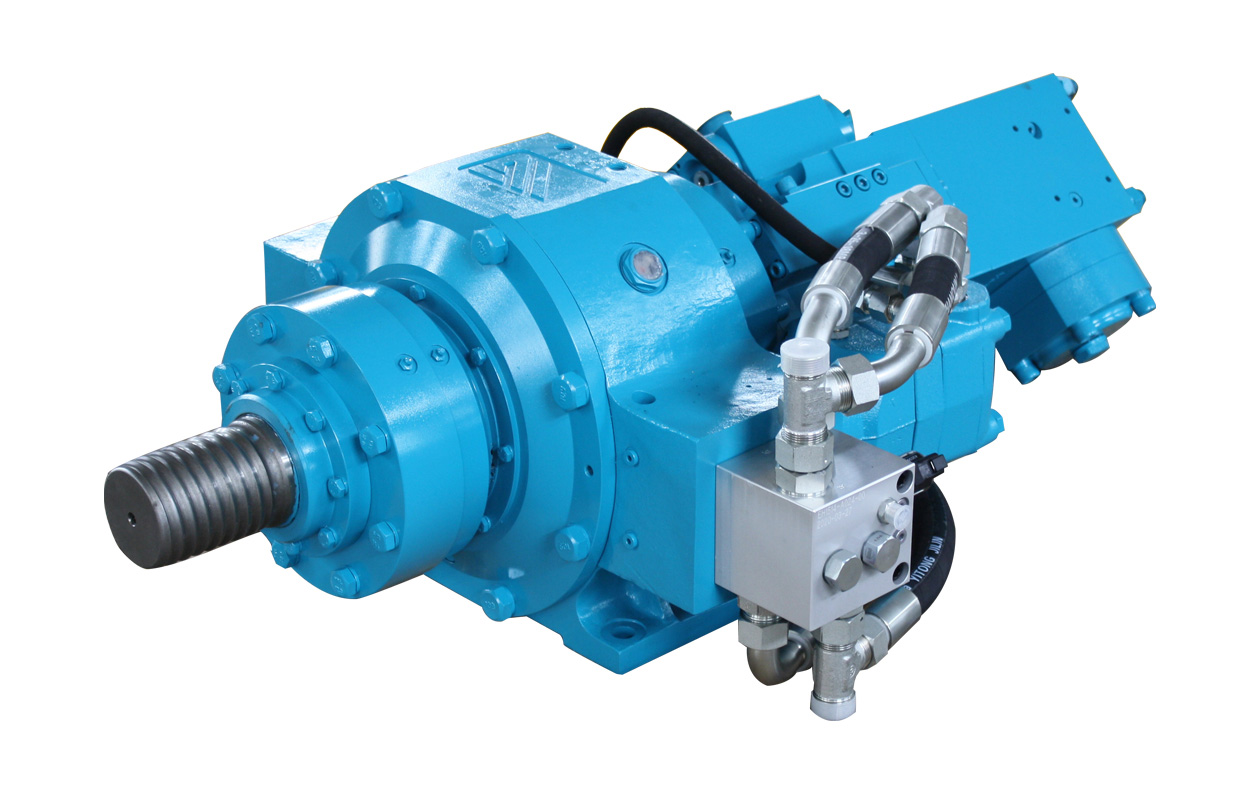

HD-100X
HD100X Rotary Power Head. Lightweight design, high torque output, efficient adaptation to complex formation drilling, core partner for engineering drilling rigs!
{Speed^122r/min}
{Slewing torque^4100N·m}
{Weight^540kg}
{Slewing torque^4100N·m}
{Weight^540kg}
APPLICATION SCENARIOS
3041
PRODUCT OVERVIEW
HD100X Rotary Power Head adopts a modular design. By replacing output components, it can quickly adapt to various construction scenarios such as jet grouting and anchoring, solving construction pain points of traditional rotary heads such as heavy load, poor working condition adaptability and single speed/torque. Equipped with world-renowned orbital motors and a series-parallel dual-mode control system, it meets diverse drilling needs including rock breaking and hole forming, anchor rods and cables, foundation reinforcement, jet grouting construction and tunnel advance support. It also features easy maintenance, low failure rate and resistance to extreme temperature ranges.
{Modular design, quickly adapts to various construction scenarios such as jet grouting and anchoring by replacing output components.}
{Equipped with world-renowned orbital motors for smooth power output, low failure rate and reliable long-hour continuous operation.}
{Free switching of series-parallel valves to achieve dual speeds, one unit meets multi-formation drilling needs.}
{Adapts to wide temperature ranges, performing stably regardless of on-site climate differences.}
{Standardized interfaces with genuine spare parts and technical support, reducing maintenance costs.}
{Equipped with world-renowned orbital motors for smooth power output, low failure rate and reliable long-hour continuous operation.}
{Free switching of series-parallel valves to achieve dual speeds, one unit meets multi-formation drilling needs.}
{Adapts to wide temperature ranges, performing stably regardless of on-site climate differences.}
{Standardized interfaces with genuine spare parts and technical support, reducing maintenance costs.}
TECHNICAL SPECS
{Power head parameters,[
Slewing torque ^8200/4100N·m,
Speed ^61/122r/min,
Rotating flow ^170L/min,
Rotating pressure ^20MPa,
modulus ^6,
Reduction ratio ^18,
Thread output ^H92,
Center height ^210mm,
Weight ^540kg,
Impact work^650J,
Impact frequency ^2300bpm,
Impact flow ^70~90L/min,
Impact pressure ^16~20Mpa,
Total power ^75~86kW,
Apply pressure ^120kN,
Enhancement ^180kN]}
Slewing torque ^8200/4100N·m,
Speed ^61/122r/min,
Rotating flow ^170L/min,
Rotating pressure ^20MPa,
modulus ^6,
Reduction ratio ^18,
Thread output ^H92,
Center height ^210mm,
Weight ^540kg,
Impact work^650J,
Impact frequency ^2300bpm,
Impact flow ^70~90L/min,
Impact pressure ^16~20Mpa,
Total power ^75~86kW,
Apply pressure ^120kN,
Enhancement ^180kN]}
